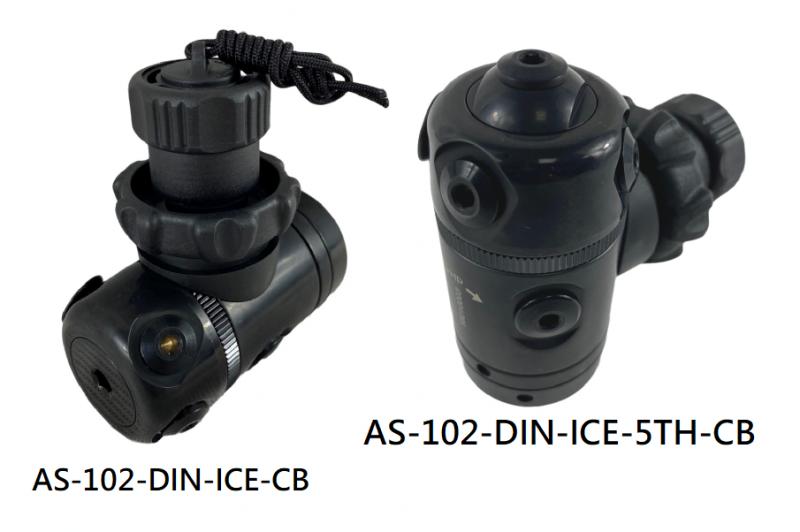

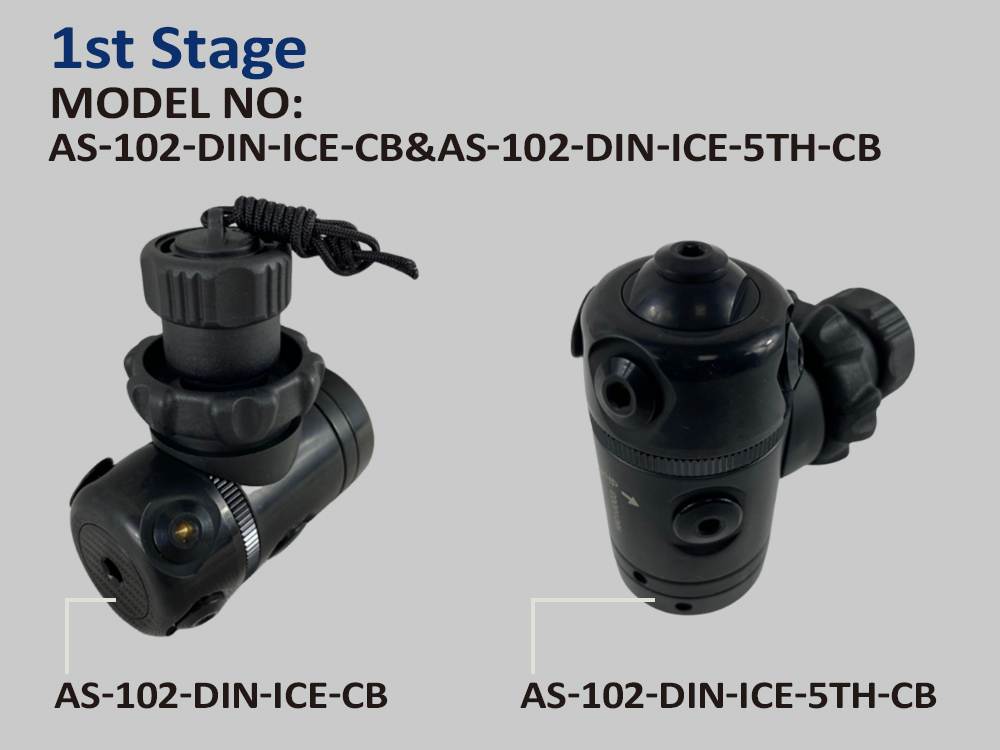

AS-102-DIN-ICE-CB&AS-102-DIN-ICE-5TH-CB

AS-102-DIN-ICE-CB&AS-102-DIN-ICE-5TH-CB
    Request Sheet

BALANCED DIAPHRAGM
Balanced diaphragm design delivers superior
breathing performance even at increased depths.
Made with corrosion resistant marine brass,
chrome plated finish.
Superior and reliable performance to meet with
technical diver rquirement as well as the demanding
needs of the Cold Water diver.
Ventilation rate ( air supply / 3000 psi ) : 135 SCFM.
Intermediate pressure: 135-145 psi. ( 9.5-10.2 bar
High pressure port: ( 7/16"-20 UNF ) x 2
Low pressure port: ( 3/8"-24 UNF ) x 4 plus swiveling turret
WeightL
AS-102-DIN-ICE-CB:800g
AS-102-DIN-ICE-5TH-CB:950g
