PG-7
Request Sheet
Inquire List

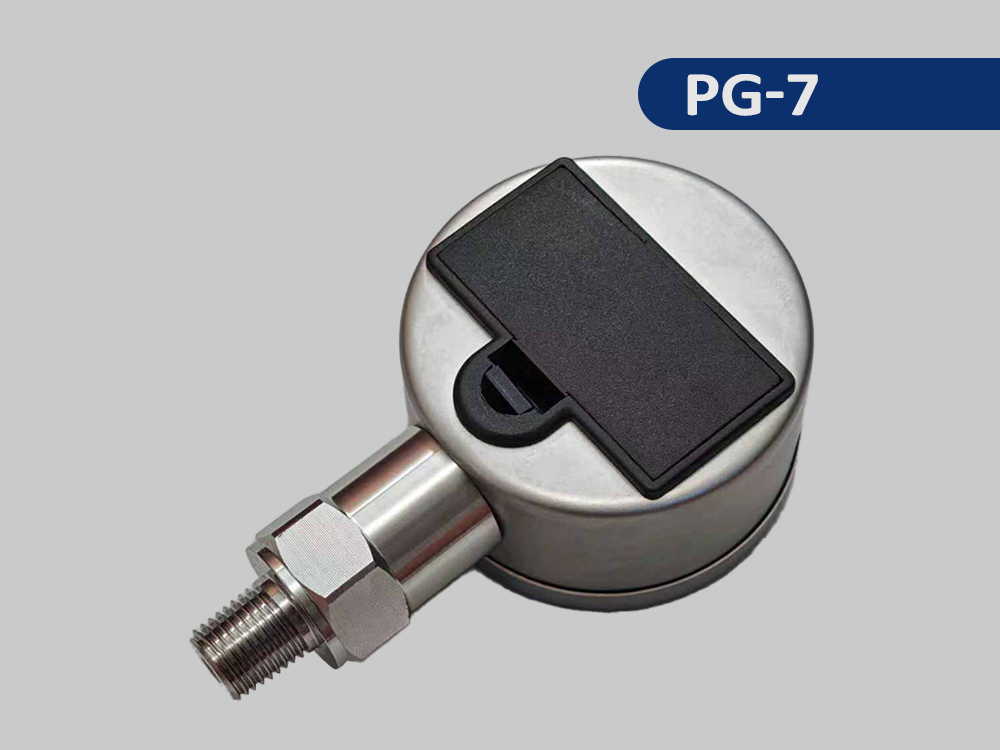

Digital pressure gauge
High-precision pressure sensor, advanced signal processing circuit.
It offers high accuracy, excellent resistance to corrosion, shock, and vibration, minimal temperature drift,
outstanding long-term stability, designed for extended continuous operation.
Technical Specifications
- Measuring Range: -0.1 to 30 MPa (selectable within this range)
- Media Temperature: 0–80°C
- Accuracy: ±1.0% / ±0.4% / ±0.2% (customizable)
- Operating Temperature: -10 to 60°C
- Display: 5-digit dynamic pressure display
- Operating Humidity: ≤80% RH
- Overload Limit: Do not exceed the maximum rated pressure

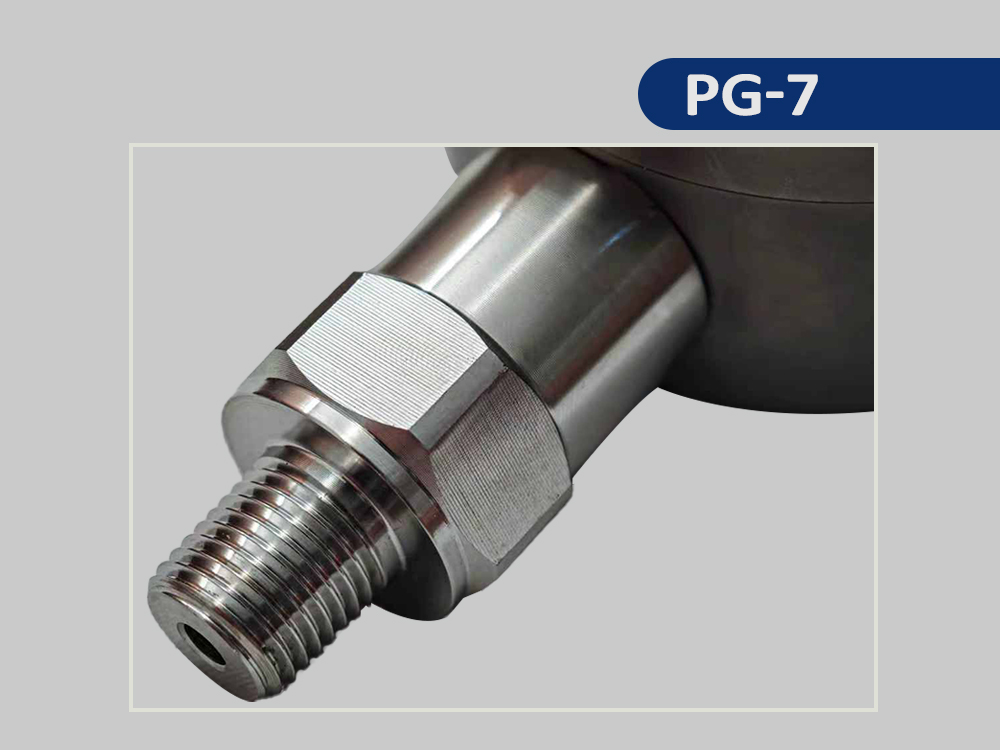

- Thread Type: 1/4 NPT (custom threads available)

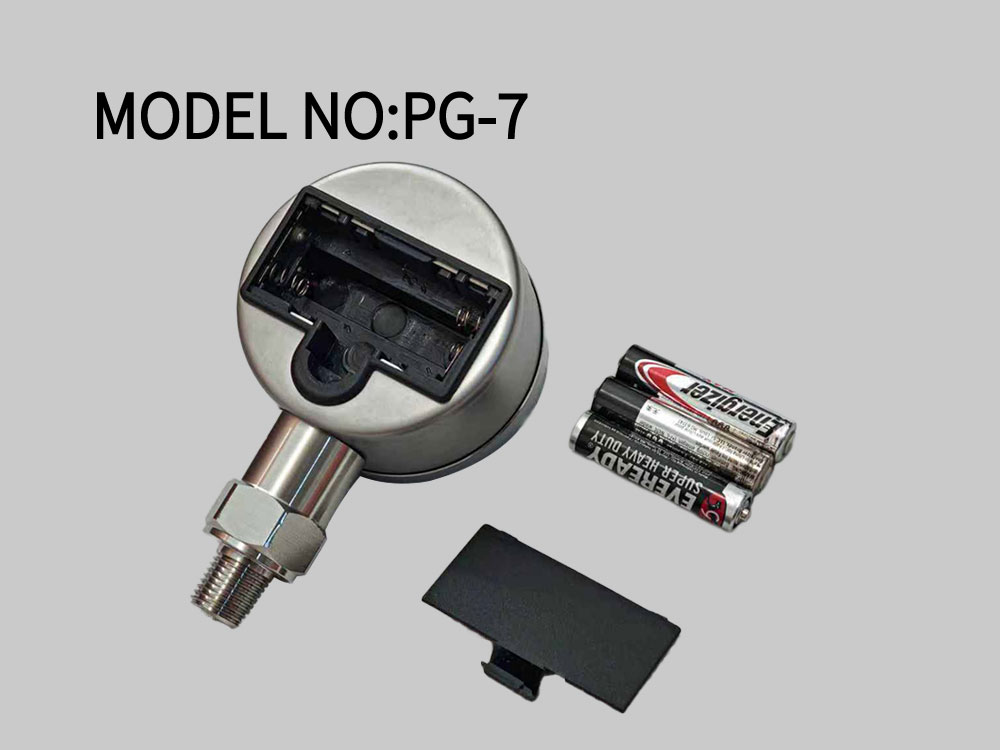

- Power Supply: Battery powered
- Pressure Type: Gauge pressure
- Media Compatibility: Suitable for gas (Air, Oxygen, Helium), water, and other media compatible with stainless steel
- Response Time: ≤50 ms
