Electronic residual pressure meter

High precision, digital display to decimal point

Technical Specifications •

*Measuring Range: -0.1 to 30 MPa (selectable within this range)

• Media Temperature: 0–80°C • Accuracy: ±1.0% / ±0.4% / ±0.2% (customizable)

• Operating Temperature: -10 to 60°C • Display: 5-digit dynamic pressure display

• Operating Humidity: ≤80% RH • Overload Limit: Do not exceed the maximum rated pressure

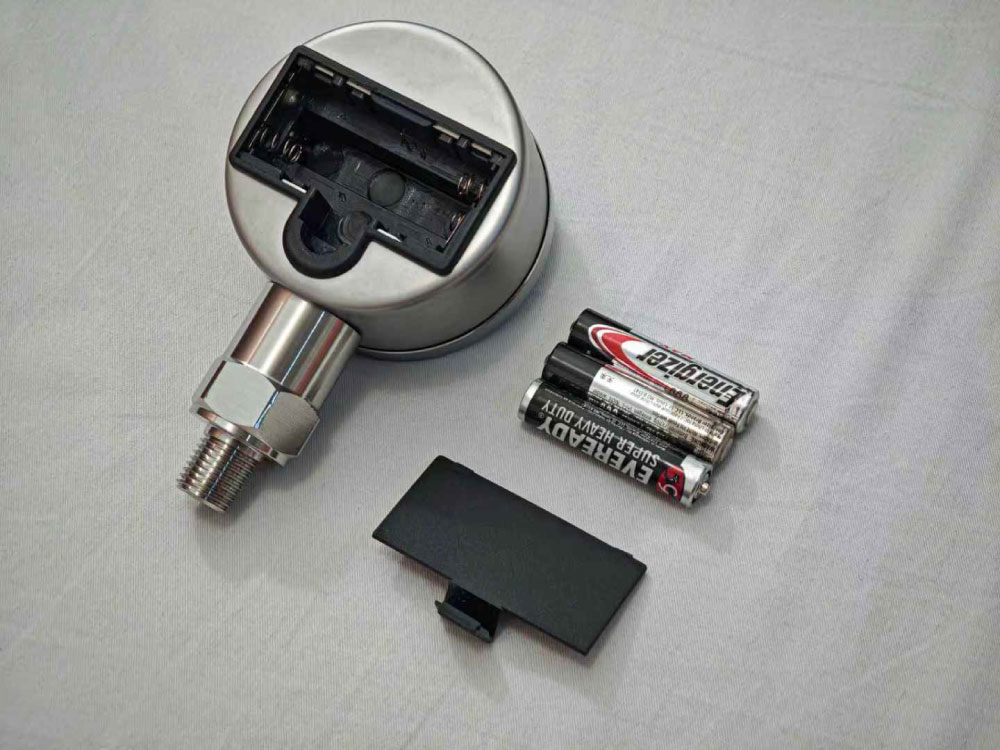

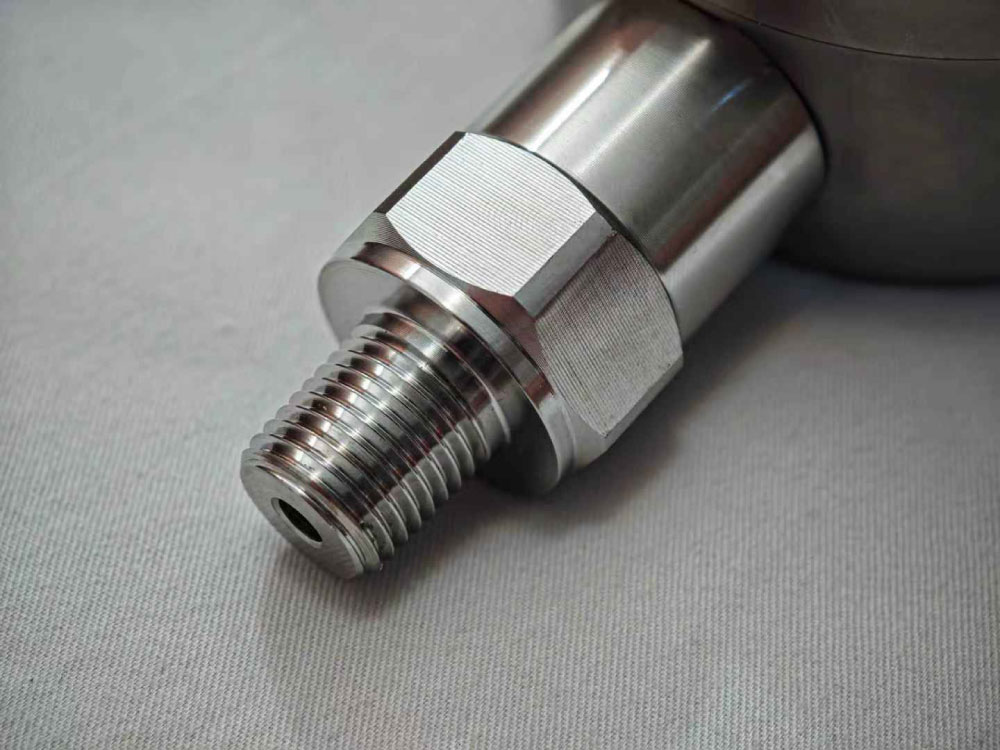

• Thread Type: 1/4 NPT (custom threads available) • Power Supply: Battery powered

• Pressure Type: Gauge pressure

• Media Compatibility: Suitable for gas (Air, Oxygen, Helium), water, and other media compatible with stainless steel

• Response Time: ≤50 ms
