BPS-05

Request Sheet      Inquire List

Alternative to stainless screws, plastic screws for a wide range of applications,
harness or backplate,pockets , single tank adapter
• To fit through a 3/8" hole. Non-corrosive, by Derlin

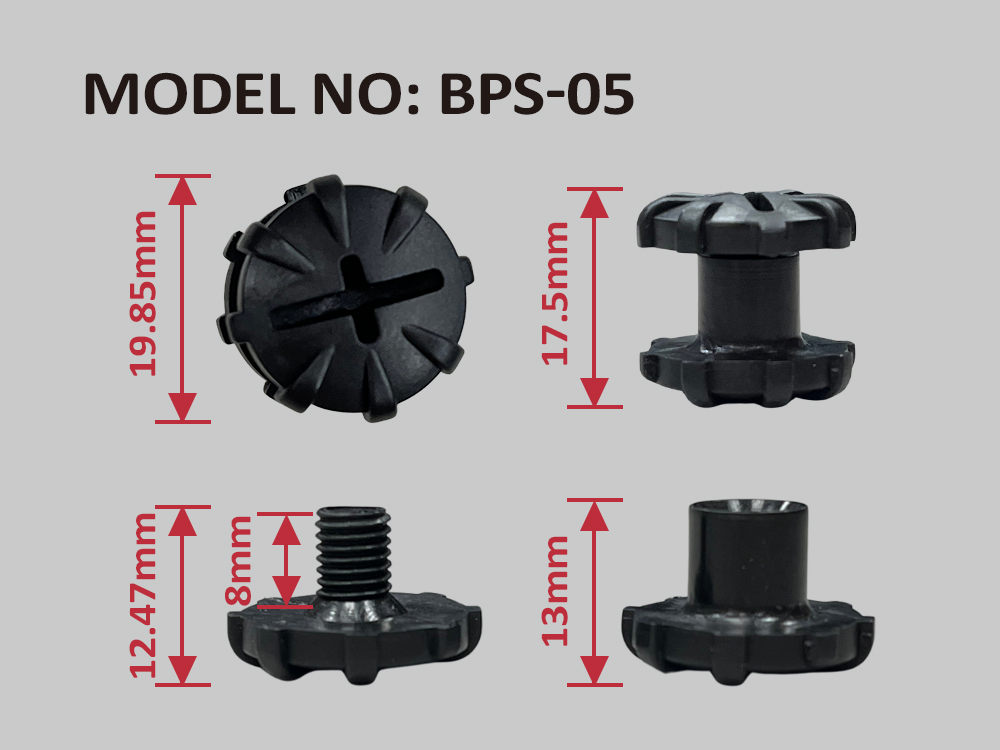

Dimensions:

Female:
Overall length: 13mm
OD.19.85mm
Length of the thread : 8.5mm


Male:
Overall length: 12.47mm
OD.19.85mm

Head diameter: 19.85mm
Shaft Diameter: 8.5mm
Thread OD: 6mm
Thread length: 8mm

BPS-05
